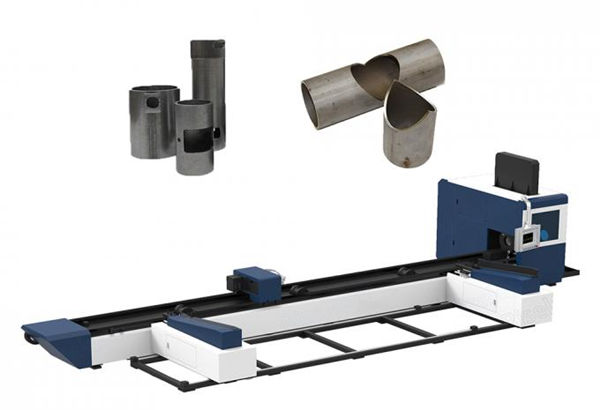

1000w tube metal fiber laser cutting machine adjustable speed

ລາຍລະອຽດຂອງສິນຄ້າ

Certification: CE，FDA，ISO9001
ເງື່ອນໄຂການຈ່າຍເງິນແລະຂົນສົ່ງ:
ຈຳ ນວນສັ່ງຊື້ຂັ້ນຕ່ ຳ: 1 ຊຸດ
ລາຄາ: ໂດລາສະຫະ
Packaging Details: Wooden Box
Delivery Time: 30-40 Days
Payment Terms: D/A, D/P, L/C, Western Union, T/T, MoneyGram
Supply Ability: 100 SETS PER MONTH

ລາຍລະອຽດຂອງສິນຄ້າ

ເງື່ອນໄຂ:	ໃຫມ່	Guide Rails:	Taiwan Hi-Win Square Guide
Fiber Laser Cutting Head:	USA Lasermech	ຄວາມໄວຕັດ:	ປັບໄດ້
Floor Space:	5.6m X 3.2m	ປະເພດເລເຊີ:	Max, Raycus, IPG
ລະບົບຄວບຄຸມ:	Professional Laser Control System--Cypcut	ລະຫັດ HS:	8456110090

Our Core Advantages

1. Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
2. Sold 4500 units of laser machines in China market in 2017, with reasonable price.
3. Fiber Laser cutting machine, (700W, 1000W, 1500W+ laser cutter), usually sell 30 units/month in China.

How Laser Cutting Works

Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish. Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.

Fiber Laser Cutting Advantages

1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

ຂໍ້ສະເພາະ

Medium of laser	Semiconductor pump continuous ytterbium doped fiber
ຄວາມຍາວຂອງເລເຊີ	1070nm
ພະລັງງານຜົນຜະລິດເລເຊີ	500W	1000W
Cutting area(mm)(L×W)	ຂະ ໜາດ 3000mm × 1500mm
Max cutting speed(m/min)	18 m/min	24 m/min
Min line width	< 0.1mm	< 0.125mm
Cutting depth	0.2mm---5mm	0.2mm---8mm
Driving Way	ມໍເຕີ servo ທີ່ ນຳ ເຂົ້າ
Tranmission Way	Y-axis imported gear rack double driver,X-axis imported gear rack
Operational Temp Range	10 ~ 40ºC
Electrical Requirements	380V/50Hz.60Amp
ແບບເຢັນ	Water cooled
ເວລາເຮັດວຽກຢ່າງຕໍ່ເນື່ອງ	24 hours
ການຮັບປະກັນ:	2 years on laser source
ນໍ້າ ໜັກ	About 3000kg
Outline size(mm)	4270mm×2420mm×1750mm (L×W×H)

ວັດສະດຸທີ່ໃຊ້ໄດ້

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

ອຸດສາຫະກໍາທີ່ໃຊ້ໄດ້

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

Fiber laser cutting samples

ບໍລິການຫລັງການຂາຍ

1.Machine ຈະໄດ້ຮັບການສະ ໜອງ ວີດີໂອການຝຶກອົບຮົມແລະປື້ມຄູ່ມືຂອງຜູ້ໃຊ້ເປັນພາສາອັງກິດ ສຳ ລັບການຕິດຕັ້ງ, ການ ດຳ ເນີນງານ, ການ ບຳ ລຸງຮັກສາແລະການຍິງທີ່ມີປັນຫາ, ແລະຈະໃຫ້ ຄຳ ແນະ ນຳ ທາງວິຊາການໂດຍທາງອີເມວ, ແຟັກ, ໂທລະສັບ, skype, whatsapp, ແລະອື່ນໆເພື່ອການແກ້ໄຂໄວ. ພວກເຮົາສາມາດສະ ເໜີ ນັກວິຊາການໄປທີ່ເວັບໄຊທ໌ຂອງລູກຄ້າ ສຳ ລັບການບໍລິການຢູ່ຕ່າງປະເທດ, ລູກຄ້າຕ້ອງຈ່າຍຄ່າວີຊ່າ, ປີ້, ຄ່າຄອງຊີບໃນທ້ອງຖິ່ນ.
2. ລູກຄ້າອາດຈະມາໂຮງງານຂອງພວກເຮົາເພື່ອການຝຶກອົບຮົມ. ພວກເຮົາຈະສະ ເໜີ ການຝຶກອົບຮົມການຕິດຕັ້ງ, ການ ດຳ ເນີນງານ, ການຍິງທີ່ມີບັນຫາແລະການ ບຳ ລຸງຮັກສາ. ໃນໄລຍະການຝຶກອົບຮົມໃນກອງປະຊຸມຂອງພວກເຮົາ, ພວກເຮົາສະ ເໜີ ການຝຶກອົບຮົມແລະຄ່າໃຊ້ຈ່າຍໃນການ ດຳ ລົງຊີວິດໂດຍບໍ່ເສຍຄ່າເປັນເວລາ 7 ວັນ, ຈຳ ກັດ 2 ຄົນ.
